A-Series (Single-Axis)
High-Performance Air Cooled Shakers

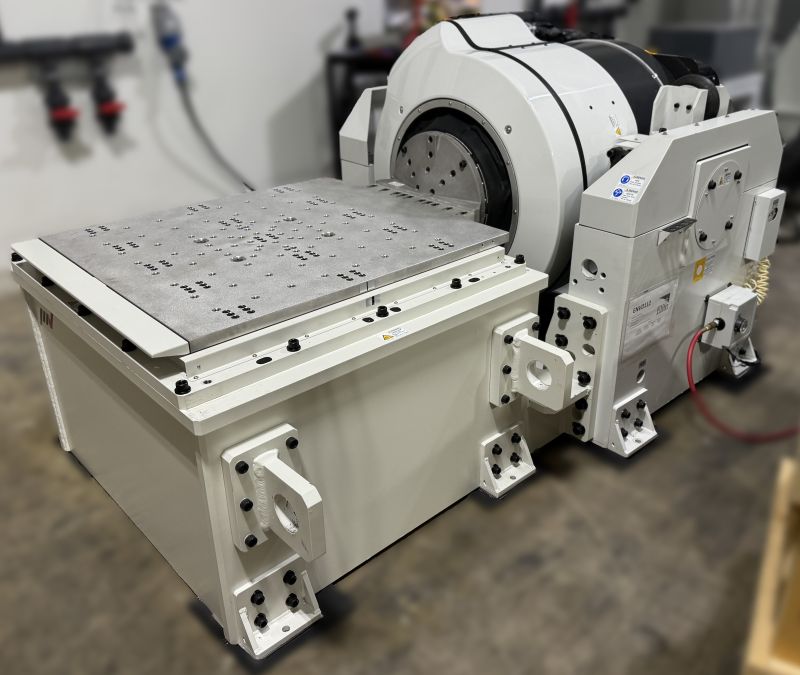

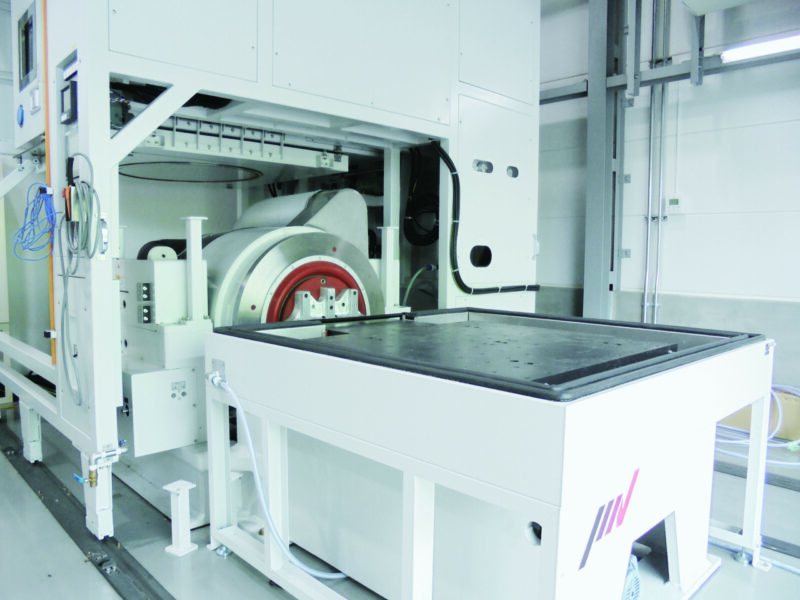

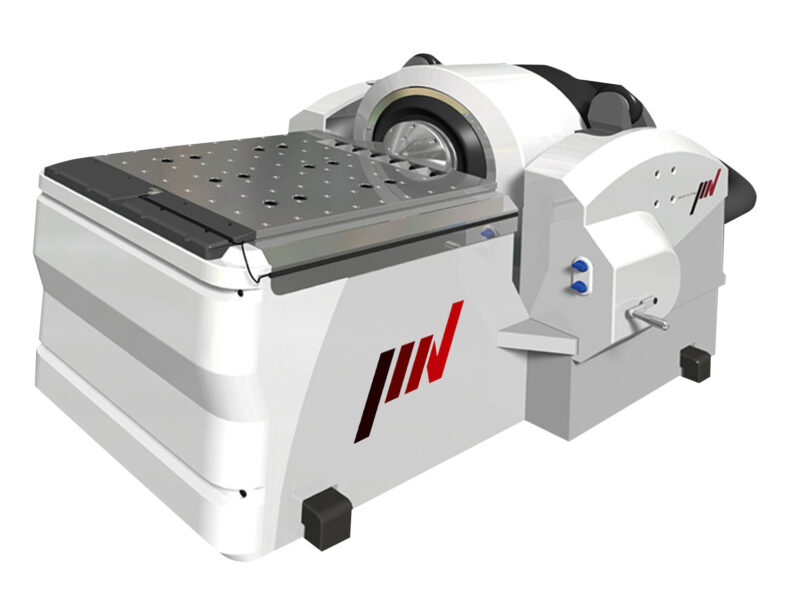

The IMV A-Series vibration test systems provide high-performance testing with leading force, displacement, and velocity. These electrodynamic shakers support aerospace, automotive, and electronics industries with force ratings from 4,950 lbf to 16,700 lbf for sine/random tests and 50,000 lbf for shock testing. With up to 3.0 inches peak-to-peak displacement and 138 in/s shock velocity, the A-Series ensures accurate and energy-efficient vibration testing.
Performance:
-

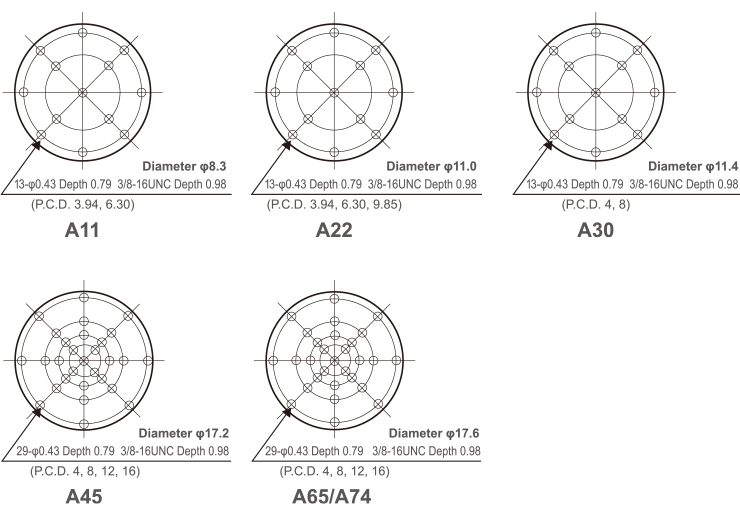

- Sine, Random, and Shock Force Ratings:
- A11: 2,470 lbf (sine), 2,470 lbf (random), 4,940 lbf (shock)
- A22: 4,940 lbf (sine), 4,940 lbf (random), 9,880 lbf (shock)
- A30: 6,800 lbf (sine), 6,800 lbf (random), 13,500 lbf (shock)
- A45: 10,120 lbf (sine), 10,120 lbf (random), 17,980 lbf (shock)
- A65: 14,620 lbf (sine), 14,620 lbf (random), 29,240 lbf (shock)
- A74: 16,700 lbf (sine), 16,700 lbf (random), 50,000 lbf (shock)
- Sine, Random, and Shock Force Ratings:
- Motor Drive Rotation: Automatically rotates and aligns the shaker vertically or horizontally for seamless integration.
- Degauss Coil: Reduces residual magnetism to ensure consistent test performance.
- Auto Trunnion Lock: Enables the user to unlock and rotate the shaker with the press of a button, enhancing usability.
- High Shock Capability: Designed to handle extreme shock testing conditions with precision.
- Airglide for Moving Shakers: Facilitates smooth and controlled movement of shakers within test environments.
Standard Options:
- TBV-1219-J60-M: This head expander measures 1219 mm × 1219 mm, has a mass of 300 kg, and supports a maximum frequency of 400 Hz.
- TBV-1450-K125-A: This larger head expander measures 1450 mm × 1450 mm, weighs 410 kg, and supports a maximum frequency of 200 Hz.
Custom Options: Please Contact our Sales Team
IMV A Series Vibration Test System
Discover the IMV A-Series vibration test system, engineered for aerospace, automotive, and electronics applications. With up to 16,700 lbf for sine/random testing and 50,000 lbf for shock, it ensures precise, energy-efficient, and adaptable testing, meeting industry standards.
