Compact Vibration Test Systems for Transportation Testing
M130LS
Popular
M130LS (Compact System)
Compact Vibration Test Systems for Transportation Testing

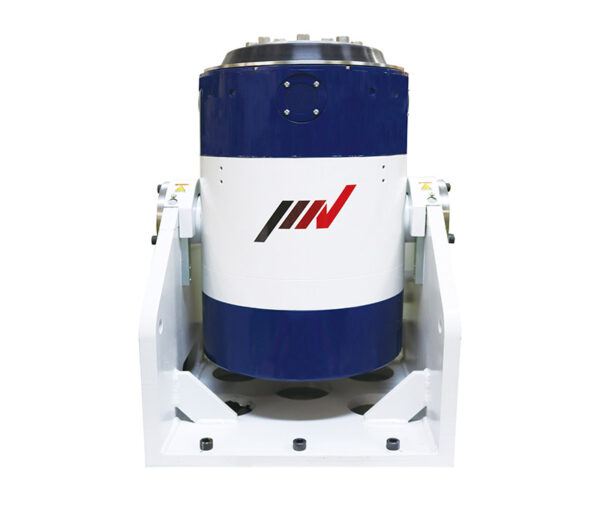

IMV’s m130LS is a compact vibration test system specifically designed for transportation vibration test standards and packaging transit testing. This low-noise vibration shaker system operates on 100V AC, allowing for easy installation anywhere. It provides an easier and more accurate way to conduct a wide variety of transportation tests, ensuring product durability during transit.
Improvement of Performance
- Wide Frequency Range: Operates from 2-1000 Hz, covering a broad spectrum of testing needs.
- High Force Output: Delivers sine forces up to 1300 N, suitable for testing specimens up to 100 kg.
- Accurate Transportation Simulation: Specifically designed to replicate transportation vibrations for reliable durability testing.
- Larger Amplitude: Offers a larger amplitude compared to conventional m-series, enhancing testing capabilities.
User-Friendly and Secure
- Easy Installation: Compatible with standard AC100-240V power, simplifying setup.

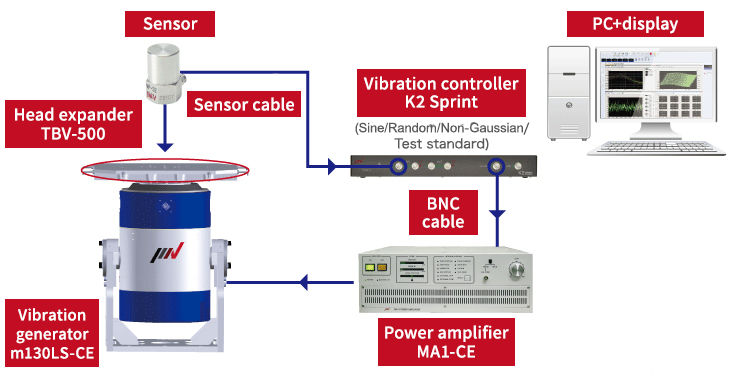

- Simplified Operation: Designed for straightforward use, especially when paired with the K2 controller and “Launcher” software for automated test file generation.
- Low Acoustic Noise: Quiet operation allows for better detection of specimen-generated noise.
- Compact Design: Small footprint enables flexible placement in various testing environments.
- Compliance Focus: Suitable for testing according to various international standards (ISO, JIS, ASTM, Amazon).
User-Friendly Principle
- Launcher Software Integration: When used with the K2 controller, test files are automatically generated by selecting test standards, streamlining the test creation process.
- Easy Test Reproduction: Saved test conditions can be easily reproduced, shortening testing time.
- Portable Option: The compact design and relatively light weight (shaker unit at 250 kg, amplifier at 25 kg) allow for easier relocation within a facility.
How to Use the m130LS, Compact Transportation Vibration Testing System
Demonstrating the setup, operation, and key features of the IMV m130LS. This compact vibration test system is specifically designed for transportation testing. The video probably highlights its ease of use for simulating the vibrations products experience during transit. It may showcase how to configure the system, run tests according to transportation vibration test standards, and interpret the results for packaging transit testing and product durability assessment using this vibration shaker system.
Visit Our YouTube
Vibration Test Systems & Shakers Product Lineup
IMV’s comprehensive vibration test systems & shakers product lineup provides solutions for a wide range of testing needs, from compact benchtop units to high-force, multi-axis systems. Discover the ideal equipment to extend the reliability and performance of your products.
Filtered Search
Have a Question About the M130LS?
Our team is ready to help you understand if this product is the right fit for your vibration testing requirements. Contact us now.
