Built-In Safety Mute
Instantly stops output in emergencies—independent of software or PC status.

Continued Test Operation During PC Disconnect

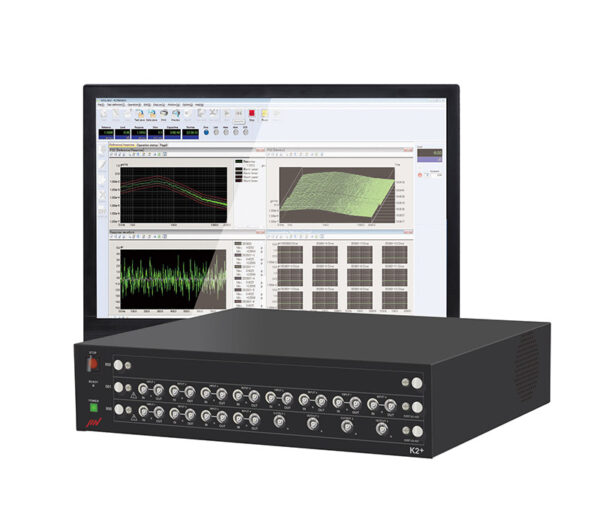

K2+ runs tests autonomously, ensuring no data loss or interruption if the PC is rebooted or disconnected.

Web-Based Interface
Control and monitor the system from any browser—no dedicated software install required.

Email Alerts for Abnormal Conditions
Automatically notifies users of test anomalies or errors for proactive issue resolution.

Secure Cloud Connectivity
Encrypted communication with iMV Cloud enables safe data access, remote updates, and system health monitoring.

No External Signal Conditioning Needed

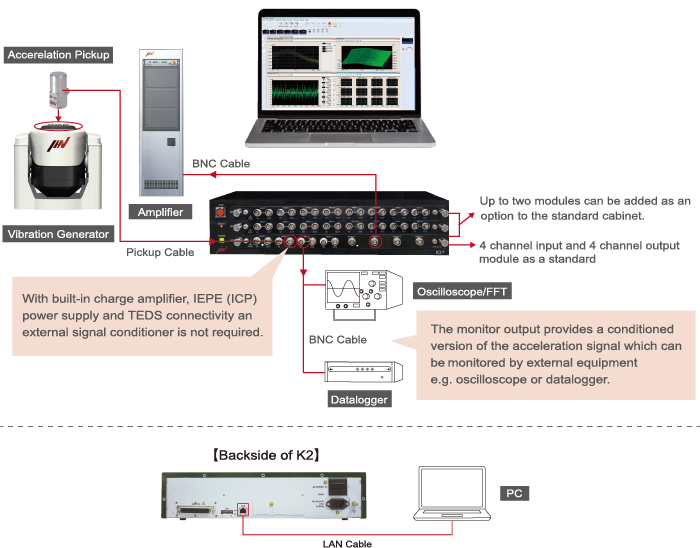

Integrated charge amplifier and TEDS/IEPE support simplify setup and reduce wiring errors.

User Role Management (Optional)
Supports multiple user profiles with access control to safeguard test settings.

• SINE
  Continuous closed-loop control (true RMS output), frequency range 0.1–20,000 Hz, supports sweep, spot, manual, open/closed-loop modes, multi-channel control by average/max/min
• RANDOM
  PSD-based closed-loop control, up to 20 kHz, supports 25,600 spectral lines, 98 dB dynamic range, 200 ms loop time, multi-channel control by average/max/min
• SHOCK
  Feed-forward control of finite-length waveforms up to 20 kHz, supports 25,600 lines, 98 dB dynamic range, multiple waveform types (classic, sine beat, measured)
• Multi-Axis Variants
  Includes Multi SINE, Multi RANDOM, and Multi SHOCK — with same spectral and dynamic specs as single-axis, but supports multi-channel/multi-output control functionality

• CAPTURE
  Analog waveform recorder (up to 51.2 kHz, 5M points, 24 channels), with filtering, PSD transforms, transmissibility analysis
• SCHEDULER
  Automates sequential execution of predefined tests
• Integrated Control System
  Enables synchronization between K2+ and environmental chambers for combined thermal-vibration testing
• TCP Communication Server
  External app integration via TCP/IP to control tests and retrieve data/status
